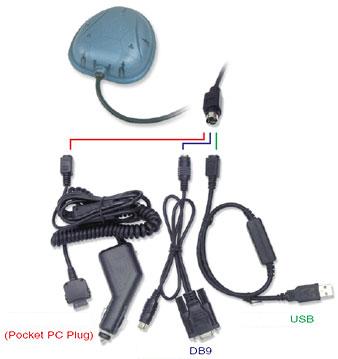

Dit is de bekende Haicom USB GPS Hi204-III SiRf Star-III met WAAS/EGNOS
en speciale watersportaanpassing.
|
-
Info + technische informatie USB-muis
WATERPROOF - WGS84 -
laag stroomverbruik, LED functiesignaal, magneet, + WAAS/EGNOS
enabled. (afbeelding kan afwijken) |
Normaal € 69,50 - AKTIEPRIJS
standaard GPS
€ 59,50 - watersport uitvoering: € 64,50 - (deze beide
GPS'en zijn waterproof en hebben een zeer hoge nauwkeurigheid) |
|
USB GPS-MUIS - uitzonderlijk
gevoelige en betrouwbare GPS- ontvanger om ook onder de slechtste weersomstandigheden
zeker te zijn van een zeer nauwkeurige plaatsbepaling.
De speciaal voor de watersport aangepaste versie geeft al vanaf
de extreem lage
snelheden van 0,3 knoop (iets meer dan een halve km/uur), een
nauwkeurige koers, snelheid en positie (een standaard GPS begint
gebruikelijkerwijze pas bij ca. 3,5
km/uur bruikbare informatie te leveren). Bovendien is deze GPS
waterproof en voorzien van WAAS/EGNOS waardoor de positiebepaling
regelmatig beter is dan 1 mtr. (terwijl dit bij een standaard GPS
meestal 10-15 mtr bedraagt). Met
de standaard USB stekker direct aansluitbaar op laptop, PC, ultra-micto
PC ed., maar ook leverbaar met PS/2 of RS-232 aansluiting.
Software:
watersport getest, geschikt voor het gebruik met o.a.: WINGPSPRO, ANWB navigatie, Pc-Navigo Nederland en
Europa, Cmap, Chart Navigator, Navigator, Seaclear, Navpack, en in principe
kan men stellen met eigenlijk alle programma's die met het NMEA-0183 protocol werken
(en dit doen tegenwoordig feitelijk vrijwel alle navigatieprogramma's). Verder
voor wegnavigatie o.a.: Route-66, MS Autoroute Europa, Destinator, o.a.
Route-66, MS Autoroute Europa, Mio, Alturion met spraak, enz.
Dus: als uw navigatie software het NMEA 0183 data protocol ondersteunt, dan werkt
de gps ontvanger hier op.
Features:
 | With USB interface. |
 | Sensitive Patch antenna is inclusive in streamline and
well-premeditated housing;unnecessary to carry on the external
antenna. |
 | Within All-in View high performance multifunctional 12-parallel
channels GPS Chipsets and low power consumption signal processor.
|
 | General GPS function in Standard NMEA 0183 V 2.2 output protocol,
therefore,supported commands are:GGA,GLL,VTG, RMC,GSA,GSV. |
 | Single Sat Positioning; it provides more position fixes in an
urban canyon or dense foliage environment. |
 | Supported most GPS or mapping software.(NMEA output) |
 | Easy plug into with your NoteBook PC or PDA and user friendly.
|
 | GPS Receiver and active. |
|
Specifications:
| Interface |
USB |
| Output |
NMEA0183 V2.2 protocol,and supports command:GGA,GSA,GSV,RMC,GLL |
| Hot Start |
Less
than 8 sec. |
| Warm Start |
Less than 40 sec. |
| Cold Start |
Less than 50 sec. |
| Acceleration Limit |
Less than 18,000m |
| Altitude Limit |
100ms |
| Re-acquisition |
Less than 1000 knots |
| Velocity Limit |
20 m/sec**3 |
| Jerk Limit |
25m 95% |
| Horizontal accuracy |
40m 95% |
| Vertical Accuracy |
0.2m/sec 95% |
| Time Accuracy |
340 nsec 95%,C/A code |
| Dimension |
100mm*58mm*25mm |
| Power Consumption |
150 mA |
| Storage Temperature |
-40°~80°C |
| Operation Temperature |
-15°~70°C |
| Channles |
12 |
| Sensitivity |
-170 dBW |
| Receiver |
L1, C/A Code |
LED
INDICATOR
|
LED flashing 0.25Hz
|
Signal Searching
|
|
LED flashing 1Hz
|
Position Fixed
|

Normaal € 74,50 inkl.BTW - Nu: AKTIEPRIJS:
€ 59,50 incl. BTW - verzenden € 6,75,
of zonder kosten afhalen ( na telefonische afspraak). Wij installeren gratis.
|
